A Brief History

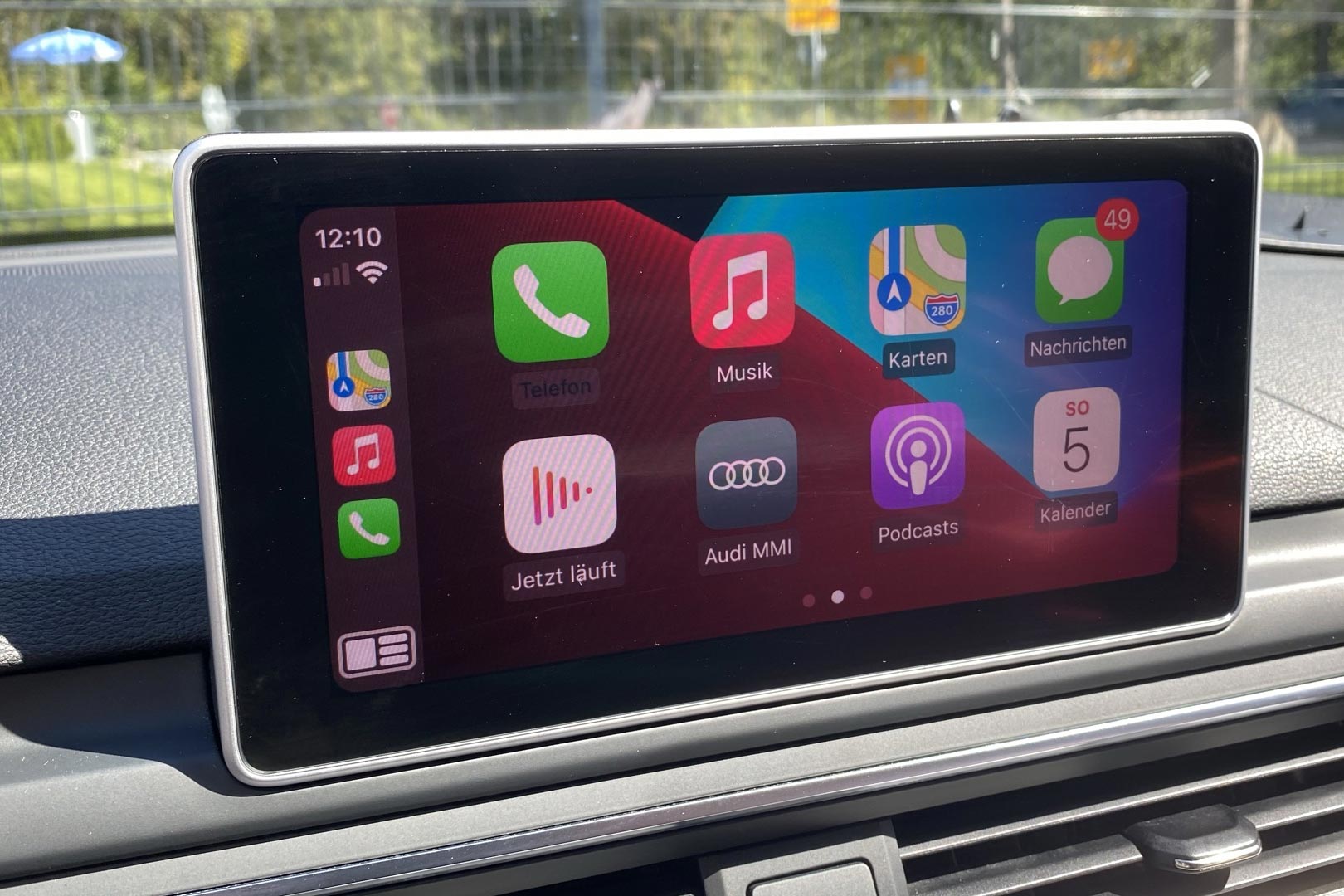

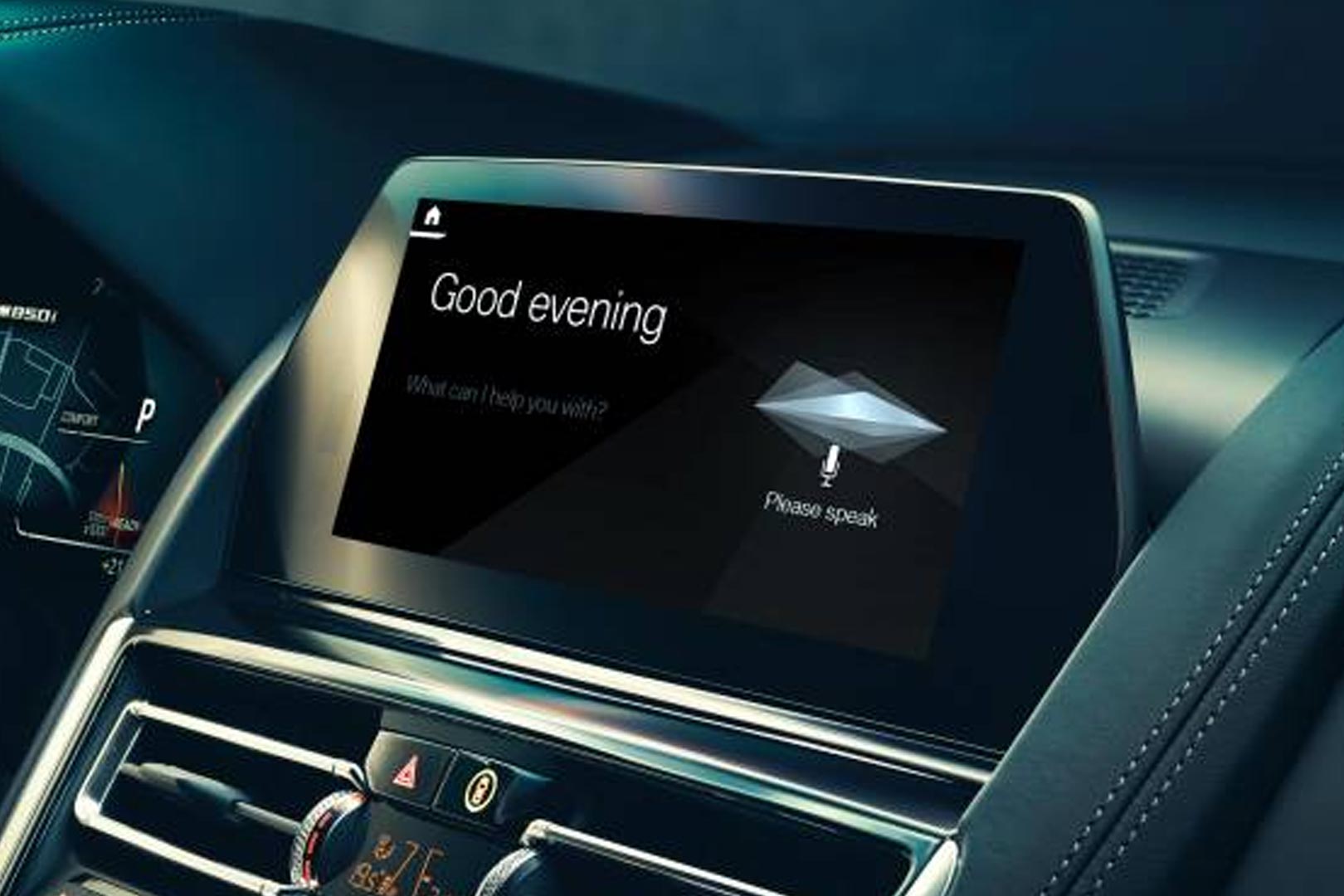

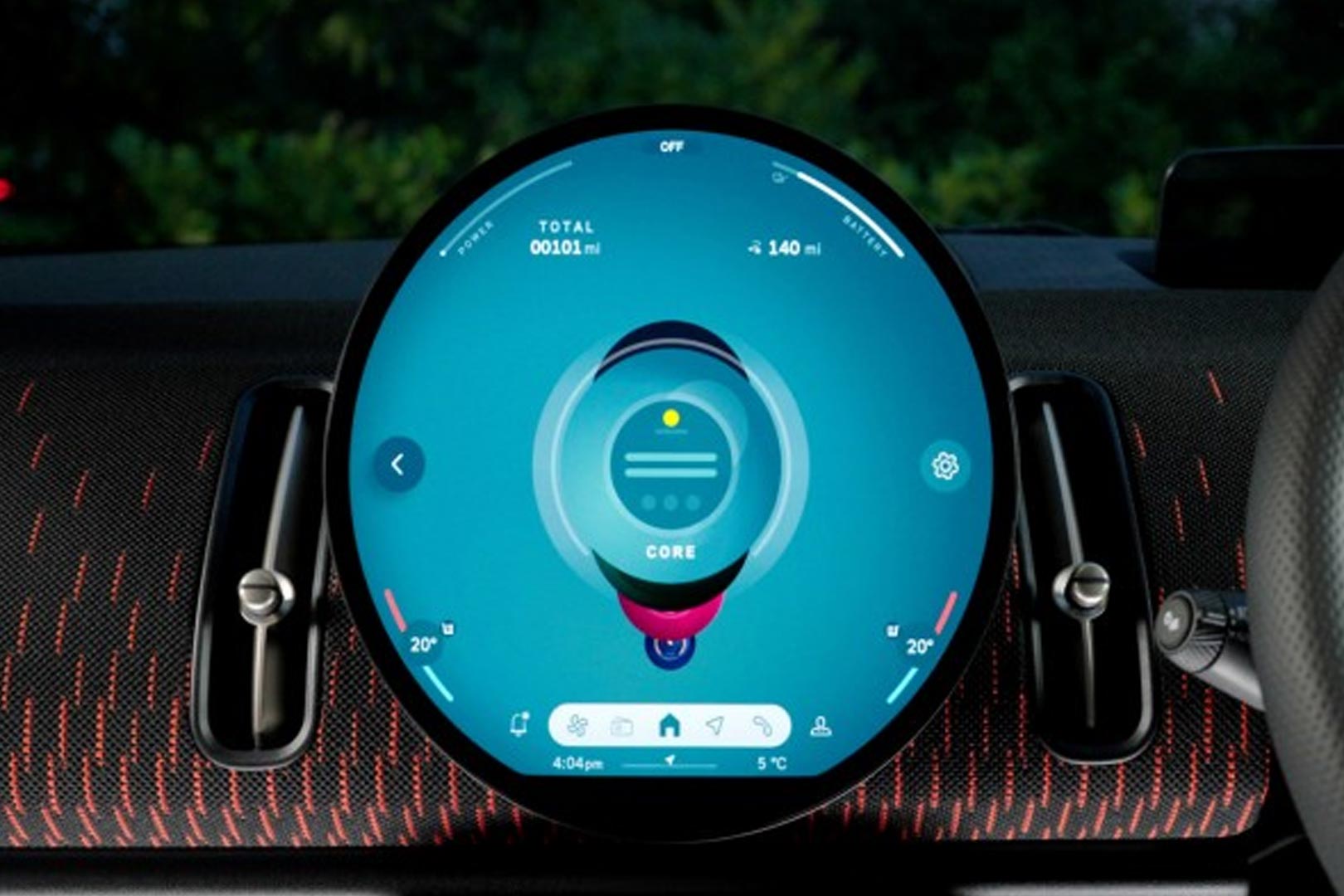

Big car tech industries such as Mercedes, MINI Cooper, BMW, and Audi have already started incorporating machine learning into their in-car user interface systems. For example, Mercedes-Benz has incorporated touch and voice control into their user experience (MBUX) systems to deliver a personalized user experience (Tarnowski, Haidenthaler, Pohl, & Pross, 2022). Similarly, BMW has introduced voice assistant personalities to improve automotive user interfaces (Braun, Mainz, Chadowitz, Pfleging, & Alt, 2019). MINI Cooper already offers a feature called ”Experience Modes”, which allows drivers to choose between different driving display preferences. Audi has incorporated machine learning into their ”Multi Media Interfaces” for fea- tures like predictive navigation and editable virtual cockpit (Geyer et al., 2020).

User Interface Design

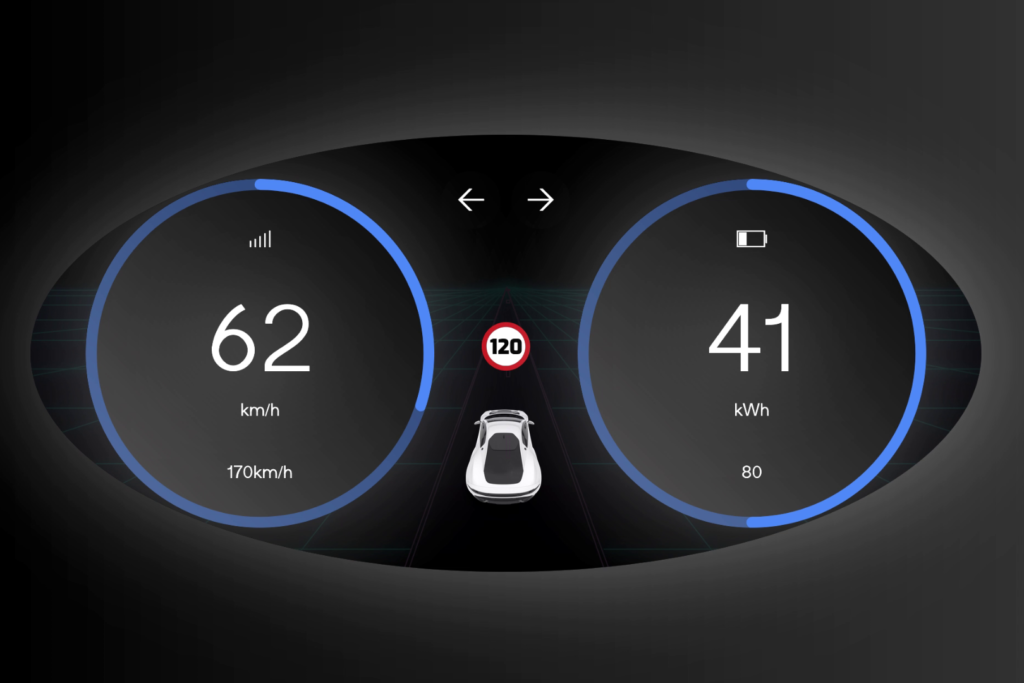

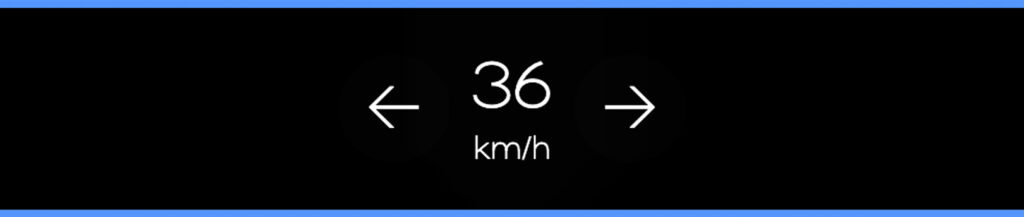

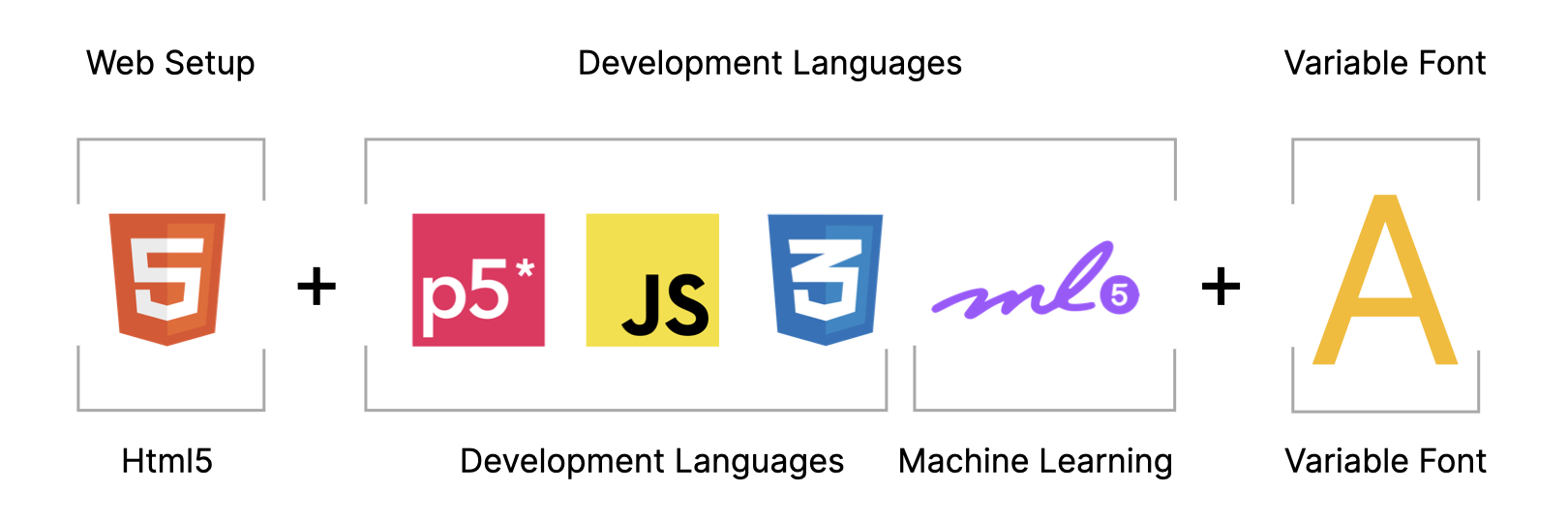

The user interface for this use case is based on two essential displays that nearly all modern cars must include. A driver instrument cluster, and a head-up display. The prototype was developed using accessible web-based technologies like HTML, CSS and JavaScript, as access to professional automotive development platforms, such as, Android Automotive OS, QNX, were unavailable during time-frame of this study. For the incorporation of facial recognition capabilities, the prototype used FaceApi machine learning model from ml5.js. This model was also used earlier in the research, specifically for the experiment with face recognition.

Main Features of the Prototype (Personalization through VF and ML)

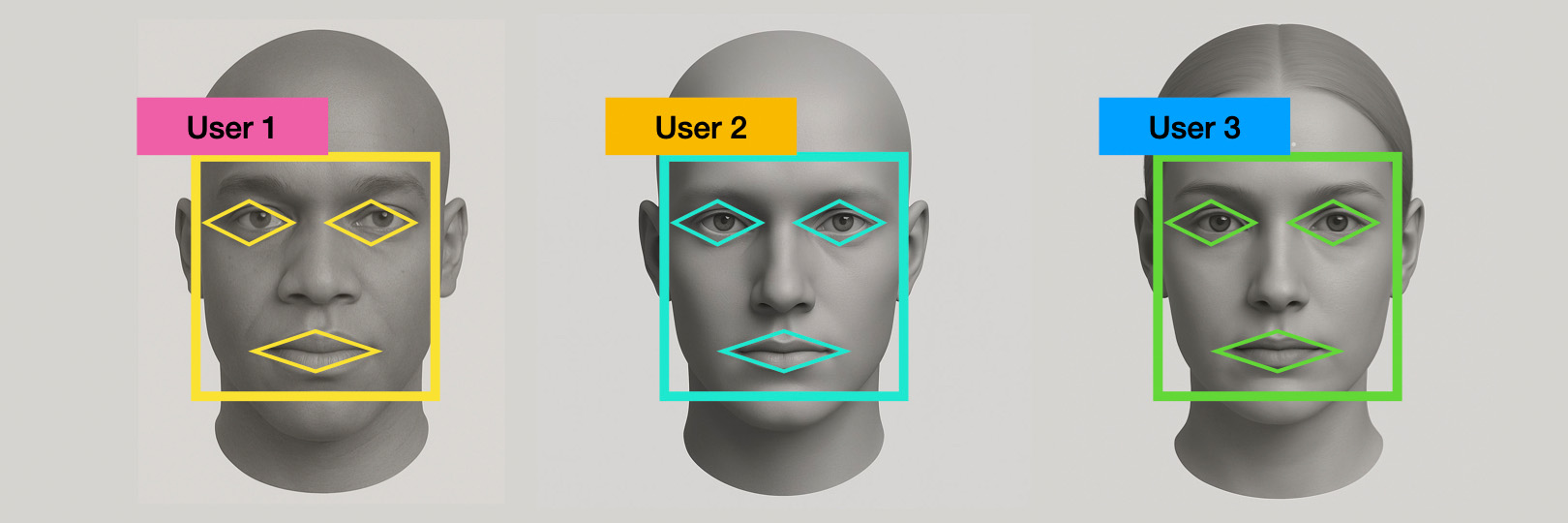

A key feature of the prototype is its ability to personalize the in-car experience by recognizing who is driving. When a driver gets into the car, they can either stick with the default settings or personalize their experience using features like face recognition and adjustable fonts. By tapping the “Begin Personalization” button, the car’s front-facing camera activates and uses machine learning to identify the driver. If it’s a new face, the system prompts the user to create a profile for future use. Once recognized, drivers can pick from four preset themes or customize their own by tweaking things like font size, weight, colors, and background. One standout feature lets drivers set different visual styles for different speeds—using bold, high-contrast fonts at high speeds for better visibility, and more refined styles when driving slower. All preferences are saved to the driver’s profile and automatically applied the next time.

Infinite Interface Variations Through Variable Fonts

By offering granular control over font parameters and color schemes, the system enables millions of possible visual configurations—essentially allowing for an infinite spectrum of font combinations. For example, the variable font can dynamically respond to driving speed. At lower speeds, where cognitive load is reduced, the interface presents a more detailed layout with lighter font weights and additional elements. As the vehicle accelerates, the font becomes bolder and higher in contrast, while non-essential elements are hidden to minimize distraction and help the driver focus on the road. In addition to speed-based changes, the overall interface can also adjust based on the driver’s previously saved personalization settings. This includes not only font properties but also background colors, accent hues, and layout preferences applied throughout the entire interior display.

Conclusion and Future Work

With the final implementation of the use case, it can be stated that the proposed synergy of variable fonts and machine learning can significantly improve the personalization of digital interfaces in a practical context. While initial feedback on the use case was positive, further research is required to evaluate the effectiveness of variable fonts in adaptive design environments. This includes techniques such as, usability testing, A/B testing, task performance analysis, think-aloud protocols, eye-tracking studies, semi-structured interviews and diary studies to gather insights about each case independently. These tests could further reveal user perceptions and contextual usage insights on how designers perceive each use case.

References:

Tarnowski, T., Haidenthaler, R., Pohl, M., & Pross, A. (2022). Mercedes-Benz MBUX
Hyperscreen Merges Technologies into Digital Dashboard Application. Informa-
tion Display, 38 (3), 12–17. doi: 10.1002/msid.1300

Geyer, J., Kassahun, Y., Mahmudi, M., Ricou, X., Durgesh, R., Chung, A. S., . . .
Schuberth, P. (2020). A2D2: Audi Autonomous Driving Dataset. arXiv. doi:
10.48550/arXiv.2004.06320
